鸿蒙应用开发从入门到实战(十一):ArkUI组件Text&TextInput

大家好,我是潘Sir,持续分享IT技术,帮你少走弯路。《鸿蒙应用开发从入门到项目实战》系列文章持续更新中,陆续更新AI+编程、企业级项目实战等原创内容、欢迎关注!


ArkUI提供了丰富的系统组件,用于制作鸿蒙原生应用APP的UI,本文主要讲解文本组件Text和TextInput的使用。


一、文本Text


1.1 概述


Text为文本组件,用于显示文字内容。


1.2 参数


Text组件的参数类型为string | Resource,下面分别对两个参数类型进行介绍:



  • string类型

Text('我是一段文本')


  • Resource 类型

Resource类型的参数用于引用 resources/*/element目录中定义的字符串,同样需要使用$r()引用。


例如resources/base/element目录中有一个string.json文件,内容如下


{
"string": [
  {
    "name": "greeting",
    "value": "你好"
  }
]
}

此时我们便可通过如下方式引用并显示greeting的内容。


Text($r('app.string.greeting'))

示例代码:


1、分别在resources下的base、en_US、zh_CN目录下的element下的string.json中添加对应的配置


在base和zh_CN下的element下的string.json中添加


 {
    "name": "greeting",
    "value": "你好,鸿蒙"
  }

在en_US目录下的element下的string.json中添加


{
    "name": "greeting",
    "value": "hello,harmony"
  }

2、component目录下新建text目录,新建TextParameterPage.ets文件


@Entry
@Component
// text组件
struct TextParameterPage {
build() {
  Column({ space: 50 }) {
    // text组件参数
    //1、字符串类型
    Text('你好,鸿蒙')
      .fontSize(50)

    //2、Resource类型
    Text($r('app.string.greeting'))
      .fontSize(50)
  }.width('100%')
  .height('100%')
  .justifyContent(FlexAlign.Center)
}
}

1.3 常用属性


1.3.1 字体大小


字体大小可通过fontSize()方法进行设置,该方法的参数类型为string | number| Resource,下面逐一介绍



  • string类型

string类型的参数可用于指定字体大小的具体单位,例如fontSize('100px'),字体大小的单位支持pxfp。其中fp(font pixel)vp类似,具体大小也会随屏幕的像素密度变化而变化。



  • number类型

number类型的参数,默认以fp作为单位。



  • Resource类型

Resource类型参数用于引用resources下的element目录中定义的数值。


示例代码:


在component/text目录下新建FontSizePage.ets文件


@Entry
@Component
// text属性:字体大小
struct FontSizePage {
 build() {
     Column({ space: 50 }) {
       // 1、参数为string类型
       Text('你好,鸿蒙')
        .fontSize('150px')

       Text('你好,鸿蒙')
        .fontSize('50fp')

       // 2、参数为number类型
       Text('你好,鸿蒙')
        .fontSize(50)
    }.width('100%')
    .height('100%')
    .justifyContent(FlexAlign.Center)
}
}

1.3.2 字体粗细


字体粗细可通过fontWeight()方法进行设置,该方法参数类型为number | FontWeight | string,下面逐一介绍



  • number类型

number类型的取值范围是[100,900],取值间隔为100,默认为400,取值越大,字体越粗。



  • FontWeight类型

FontWeight为枚举类型,可选枚举值如下


名称描述
FontWeight.Lighter字体较细。
FontWeight.Normal字体粗细正常。
FontWeight.Regular字体粗细正常。
FontWeight.Medium字体粗细适中。
FontWeight.Bold字体较粗。
FontWeight.Bolder字体非常粗。


  • string类型

string类型的参数仅支持number类型和FontWeight类型参数的字符串形式,例如例如'100'bold


示例代码:


在component/text下新建FontWeightPage.ets文件


@Entry
@Component
// 字体粗细
struct FontWeightPage {

 build() {
   Column({ space: 50 }) {

     //默认效果
     Text('你好,鸿蒙')
      .fontSize(50)

     // 1、number类型
     Text('你好,鸿蒙')
      .fontSize(50)
      .fontWeight(666)

     // 2、FontWeight类型
     Text('你好,鸿蒙')
      .fontSize(50)
      .fontWeight(FontWeight.Lighter)

     // 3、string类型
     Text('你好,鸿蒙')
      .fontSize(50)
      .fontWeight('800')

  }.width('100%')
  .height('100%')
  .justifyContent(FlexAlign.Center)
}
}

1.3.3 字体颜色


字体颜色可通过fontColor()方法进行设置,该方法参数类型为Color | string | number | Resource,下面逐一介绍



  • Color类型

    Color为枚举类型,其中包含了多种常用颜色,例如Color.Green


  • string类型

    string类型的参数可用于设置 rgb 格式的颜色,具体写法可以为'rgb(0, 128, 0)'或者'#008000'


  • number类型

    number类型的参数用于使用16进制的数字设置 rgb 格式的颜色,具体写法为0x008000


  • Resource类型

    Resource类型的参数用于应用resources下的element目录中定义的值。



示例代码:


在component/text目录下新建FontColorPage.ets文件


@Entry
@Component
// 字体颜色
struct FontColorPage {

 build() {
   Column({ space: 50 }) {
     // 1、Color类型
     Text('Color.Green')
      .fontSize(40)
      .fontWeight(FontWeight.Bold)
      .fontColor(Color.Green)

     // 2、string类型
     Text('rgb(0, 128, 0)')
      .fontSize(40)
      .fontWeight(FontWeight.Bold)
      .fontColor('rgba(59, 171, 59, 0.33)')

     Text('#008000')
      .fontSize(40)
      .fontWeight(FontWeight.Bold)
      .fontColor('#a4008000')

     // 3、number类型
     Text('0x008000')
      .fontSize(40)
      .fontWeight(FontWeight.Bold)
      .fontColor(0xa4008000)

  }.width('100%')
  .height('100%')
  .justifyContent(FlexAlign.Center)
}
}

1.3.4 文本对齐


文本对齐方向可通过textAlign()方法进行设置,该方法的参数为枚举类型TextAlign,可选的枚举值如下


名称描述
TextAlign.Start首部对齐
TextAlign.Center居中对齐
TextAlign.End尾部对齐

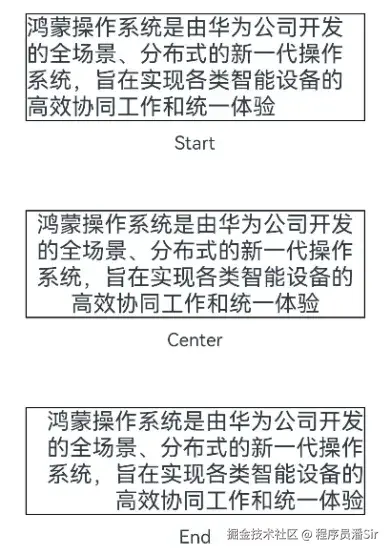

各选项效果如下


示例代码:


text目录下新建TextAlignPage.ets文件


@Entry
@Component
// 文本对齐
struct TextAlignPage {

 build() {
   Row() {
     Column({ space: 50 }) {
       Column({ space: 10 }) {
         // 1、TextAlign.Start
         Text('鸿蒙操作系统是由华为公司开发的全场景、分布式的新一代操作系统,旨在实现各类智能设备的高效协同工作和统一体验')
          .fontSize(20)
          .width(300)
          .borderWidth(1)
          .textAlign(TextAlign.Start)
         Text('Start')
      }

       Column({ space: 10 }) {
         // 2、TextAlign.Center
         Text('鸿蒙操作系统是由华为公司开发的全场景、分布式的新一代操作系统,旨在实现各类智能设备的高效协同工作和统一体验')
          .fontSize(20)
          .width(300)
          .borderWidth(1)
          .textAlign(TextAlign.Center)
         Text('Center')
      }

       Column({ space: 10 }) {
         // 3、TextAlign.End
         Text('鸿蒙操作系统是由华为公司开发的全场景、分布式的新一代操作系统,旨在实现各类智能设备的高效协同工作和统一体验')
          .fontSize(20)
          .width(300)
          .borderWidth(1)
          .textAlign(TextAlign.End)
         Text('End')
      }

    }.width('100%')
    .height('100%')
    .justifyContent(FlexAlign.Center)
  }
}
}

1.3.5 最大行数和超长处理


可使用maxLines()方法控制文本的最大行数,当内容超出最大行数时,可使用textOverflow()方法处理超出部分,该方法的参数类型为{ overflow: TextOverflow },其中TextOverflow为枚举类型,可用枚举值有


名称描述
TextOverflow.Clip文本超长时,进行裁剪显示。
TextOverflow.Ellipsis文本超长时,显示不下的文本用省略号代替。

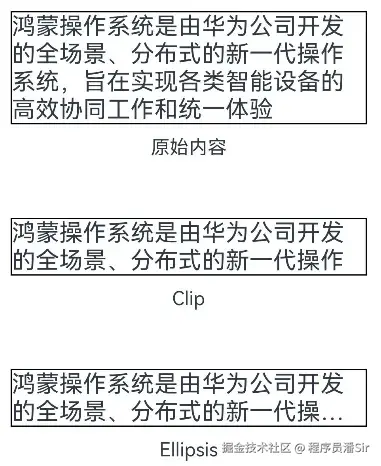

各选项效果如下




示例代码:


在component/text目录下新建TextOverFlowPage.ets文件


@Entry
@Component
// 最大行数和超长处理
struct TextOverFlowPage {

 build() {
   Column({ space: 50 }) {
     Column({ space: 10 }) {
       Text('鸿蒙操作系统是由华为公司开发的全场景、分布式的新一代操作系统,旨在实现各类智能设备的高效协同工作和统一体验')
        .fontSize(20)
        .width(300)
        .borderWidth(1)
       Text('原始内容')
    }

     // 1、TextOverflow.Clip 文本超长时,进行裁剪显示
     Column({ space: 10 }) {
       Text('鸿蒙操作系统是由华为公司开发的全场景、分布式的新一代操作系统,旨在实现各类智能设备的高效协同工作和统一体验')
        .fontSize(20)
        .width(300)
        .borderWidth(1)
        .maxLines(2)
        .textOverflow({ overflow: TextOverflow.Clip })
       Text('Clip')
    }

     // 2、TextOverflow.Ellipsis 文本超长时,显示不下的文本用省略号代替
     Column({space:10}) {
       Text('鸿蒙操作系统是由华为公司开发的全场景、分布式的新一代操作系统,旨在实现各类智能设备的高效协同工作和统一体验')
        .fontSize(20)
        .width(300)
        .borderWidth(1)
        .maxLines(2)
        .textOverflow({ overflow: TextOverflow.Ellipsis })
       Text('Ellipsis')
    }

  }.width('100%')
  .height('100%')
  .justifyContent(FlexAlign.Center)
}
}

二、文本输入TextInput


2.1 概述


TextInput为文本输入组件,用于接收用户输入的文本内容。


2.2 参数


TextInput组件的参数定义如下


TextInput(value?:{placeholder?: string|Resource , text?: string|Resource})


  • placeholder

placeholder属性用于设置无输入时的提示文本,效果如下





  • text

text用于设置输入框当前的文本内容,效果如下




示例代码:


component目录下新建input目录,新建TextInputParameter.ets文件


@Entry
@Component
// 文本输入参数
struct TextInputParameter {

 build() {
   Column({ space: 50 }) {
     TextInput()
      .width('70%')

     // 1、placeholder参数
     TextInput({ placeholder: '请输入用户名' })
      .width('70%')

     // 2、text参数
     TextInput({ text: '当前内容' })
      .width('70%')

  }.width('100%')
  .height('100%')
  .justifyContent(FlexAlign.Center)
}
}

2.3 常用属性


2.3.1 输入框类型


可通过type()方法设置输入框的类型,该方法的参数为InputType枚举类型,可选的枚举值有


名称描述
InputType.Normal基本输入模式
InputType.Password密码输入模式
InputType.Number纯数字输入模式

2.3.2 光标样式

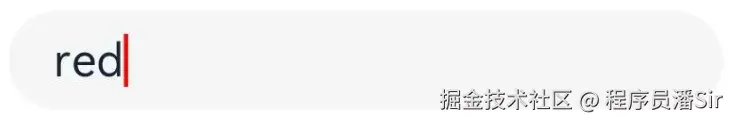

可通过caretColor()方法设置光标的颜色,效果如下




2.3.3 placeholder样式

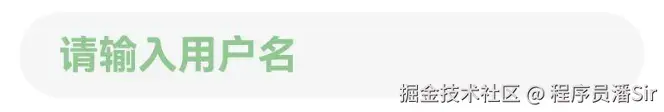

可通过placeholderFont()placeholderColor()方法设置 placeholder 的样式,其中placeholderFont()用于设置字体,包括字体大小、字体粗细等,placeholderColor()用于设置字体颜色,效果如下




2.3.4 文本样式


输入文本的样式可通过fontSize()fontWeight()fontColor()等通用属性方法进行设置。


示例代码:


在input目录下新建TextInputAttributePage.ets文件


@Entry
@Component
// TextInput属性
struct TextInputAttributePage {

build() {
Column({ space: 50 }) {

// 1、输入框类型 type()设置类型, InputType
Column({ space: 10 }) {
Text('输入框类型')
TextInput({ placeholder: '请输入任意内容' })
.width('70%')
.type(InputType.Normal)
TextInput({ placeholder: '请输入数字' })
.width('70%')
.type(InputType.Number)
TextInput({ placeholder: '请输入密码' })
.width('70%')
.type(InputType.Password)
}

// 2、光标样式 caretColor()设置光标的颜色
Column({ space: 10 }) {
Text('光标样式')
TextInput()
.width('70%')
.caretColor(Color.Red)
}

// 3、placeholder样式 placeholderFont、placeholderColor
Column({ space: 10 }) {
Text('placeholder样式')
TextInput({ placeholder: '请输入用户名' })
.width('70%')
.placeholderFont({ weight: 800 ,style:FontStyle.Italic})
.placeholderColor('#66008000')
}

}.width('100%')
.height('100%')
.justifyContent(FlexAlign.Center)
}
}

2.4 常用事件


2.4.1 change事件


每当输入的内容发生变化,就会触发 change 事件,开发者可使用onChange()方法为TextInput组件绑定 change 事件,该方法的参数定义如下


onChange(callback: (value: string) => void)

其中value为最新内容。


2.4.2 焦点事件


焦点事件包括获得焦点失去焦点两个事件,当输入框获得焦点时,会触发 focus 事件,失去焦点时,会触发 blur 事件,开发者可使用onFocus()onBlur()方法为 TextInput 组件绑定相关事件,两个方法的参数定义如下


onFocus(event: () => void)

onBlur(event: () => void)

示例代码:


在input目录下新建TextInputEvent.ets文件


@Entry
@Component
// TextInput事件
struct TextInputEvent {

build() {
Column({ space: 50 }) {
TextInput({ placeholder: '请输入用户名' })
.width('70%')
.type(InputType.Normal)
// 1、change事件
.onChange((value) => {
console.log(`用户名:${value}`)
})
// 2、获得焦点
.onFocus(() => {
console.log('用户名输入框获得焦点')
})
// 3、失去焦点
.onBlur(() => {
console.log('用户名输入框失去焦点')
})

TextInput({ placeholder: '请输入密码' })
.width('70%')
.type(InputType.Password)
.onChange((value) => {
console.log(`密码:${value}`)
})
.onFocus(() => {
console.log('密码输入框获得焦点')
})
.onBlur(() => {
console.log('密码输入框失去焦点')
})
}.width('100%')
.height('100%')
.justifyContent(FlexAlign.Center)
}
}

《鸿蒙应用开发从入门到项目实战》系列文章持续更新中,陆续更新AI+编程、企业级项目实战等原创内容,防止迷路,欢迎关注!


作者:程序员潘Sir
来源:juejin.cn/post/7552700954286653483
