uni-app小程序分包中使用 Echarts， 并在分包里加载依赖

这篇笔记主要记录uni-app小程序, 在分包中使用Echarts，并在分包里加载Echarts依赖，减少主包的大小，提升小程序的加载速度.

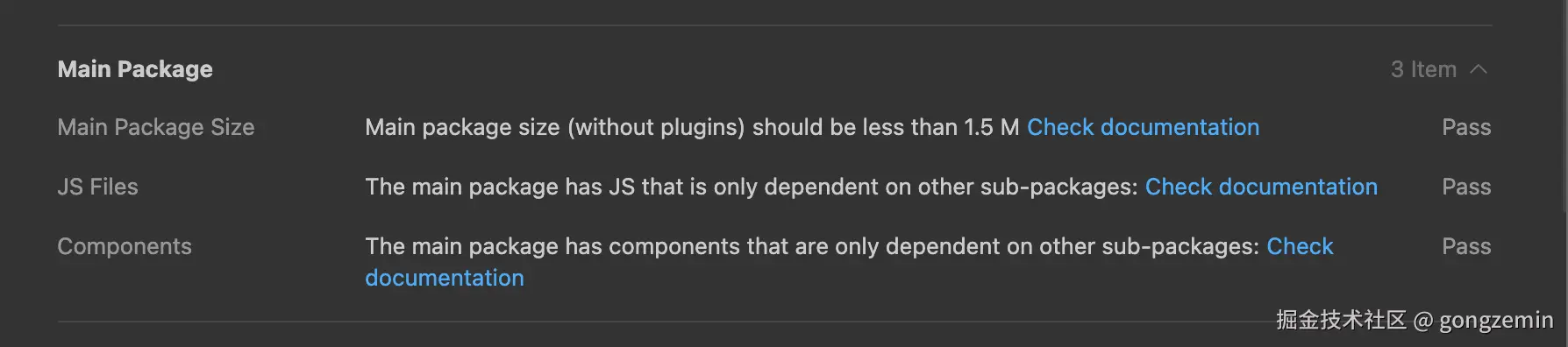

先看下效果，图表正常渲染，主包大小小于1.5M，主包存在仅被其他分包依赖的JS文件也通过✅

在分包中使用Echarts

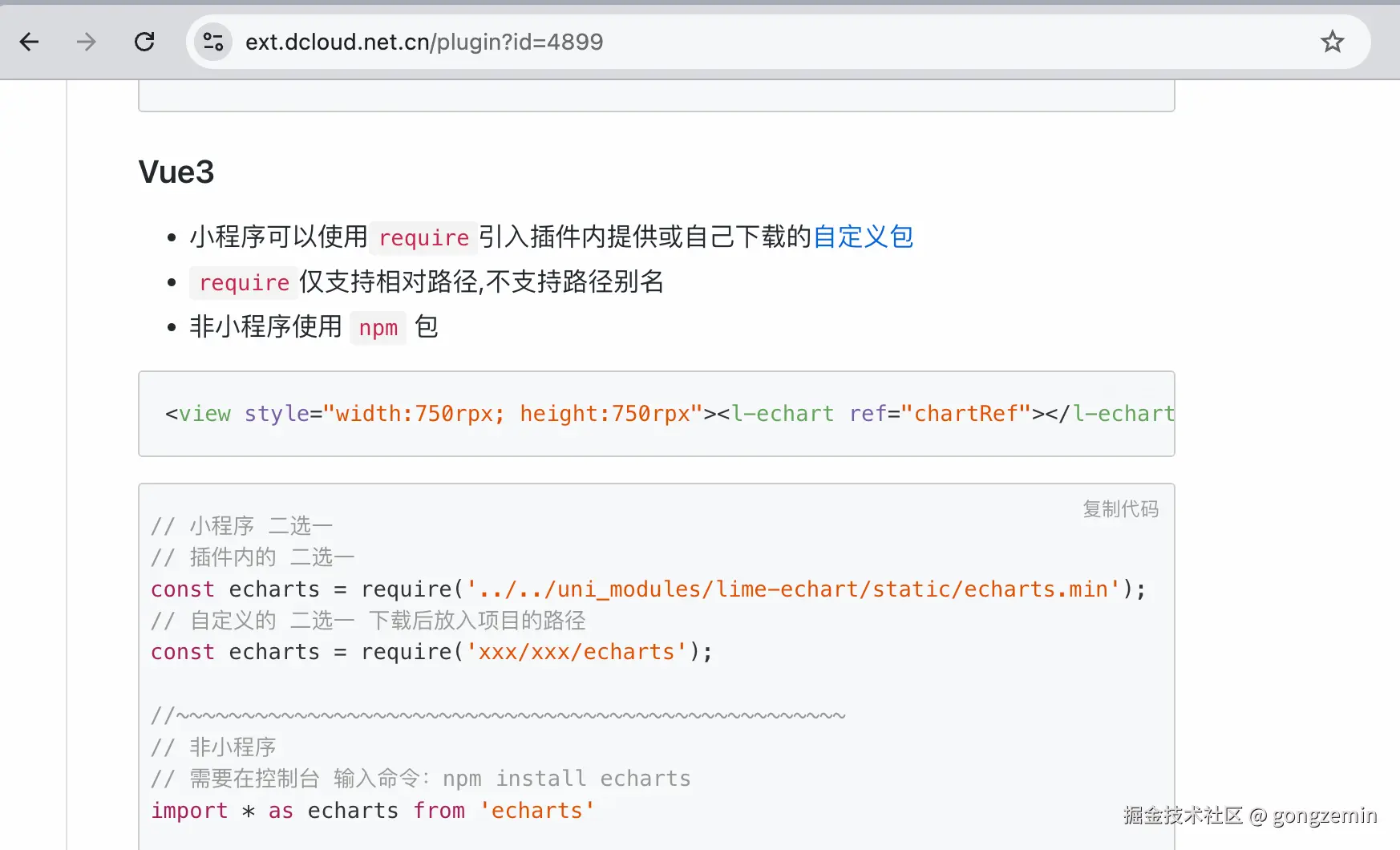

我们要用的Echarts插件是lime-chart, 我们看下文档, 插件下载页面下面的描述

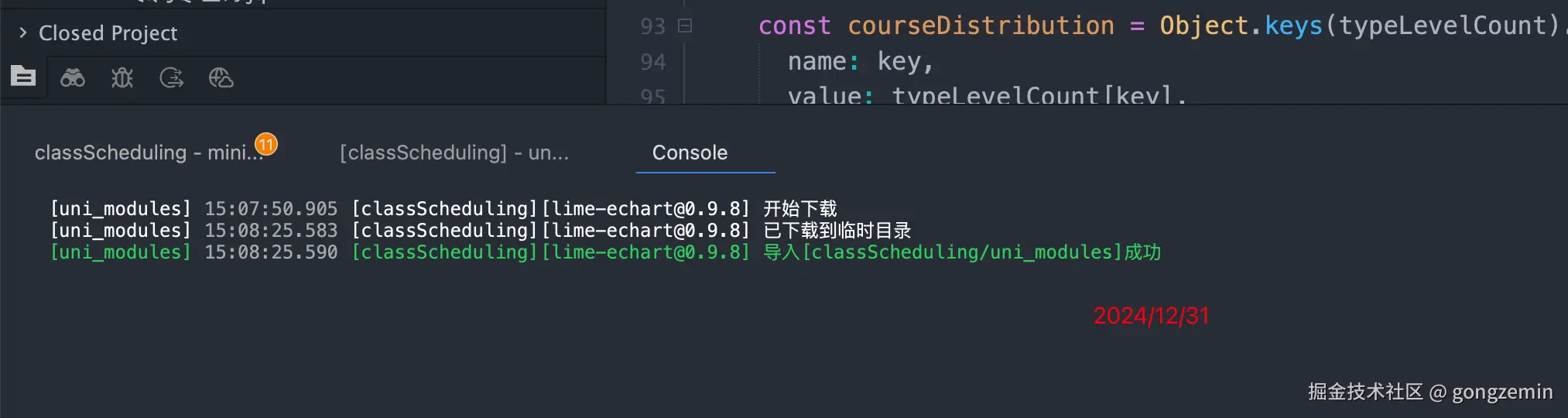

我们是Vue3小程序，先下载插件，下载好插件后，插件会安装在项目根目录下的uni_modules文件夹，下载插件截图

根据文档，我们require相对引入echarts.min文件，我们要渲染的图表数据来自接口

<script setup>

import { onMounted } from 'vue'

// 根据项目目录相对引入

const echarts = require("../../uni_modules/lime-echart/static/echarts.min.js");


const getData = async () => {

   const chartData = await getChartData() // 获取图表数据

   setTimeout(() => {

     renderChart() // 数据返回后渲染图表

   }, 500)

}


onMounted(() => {

  getData()

})

</script>

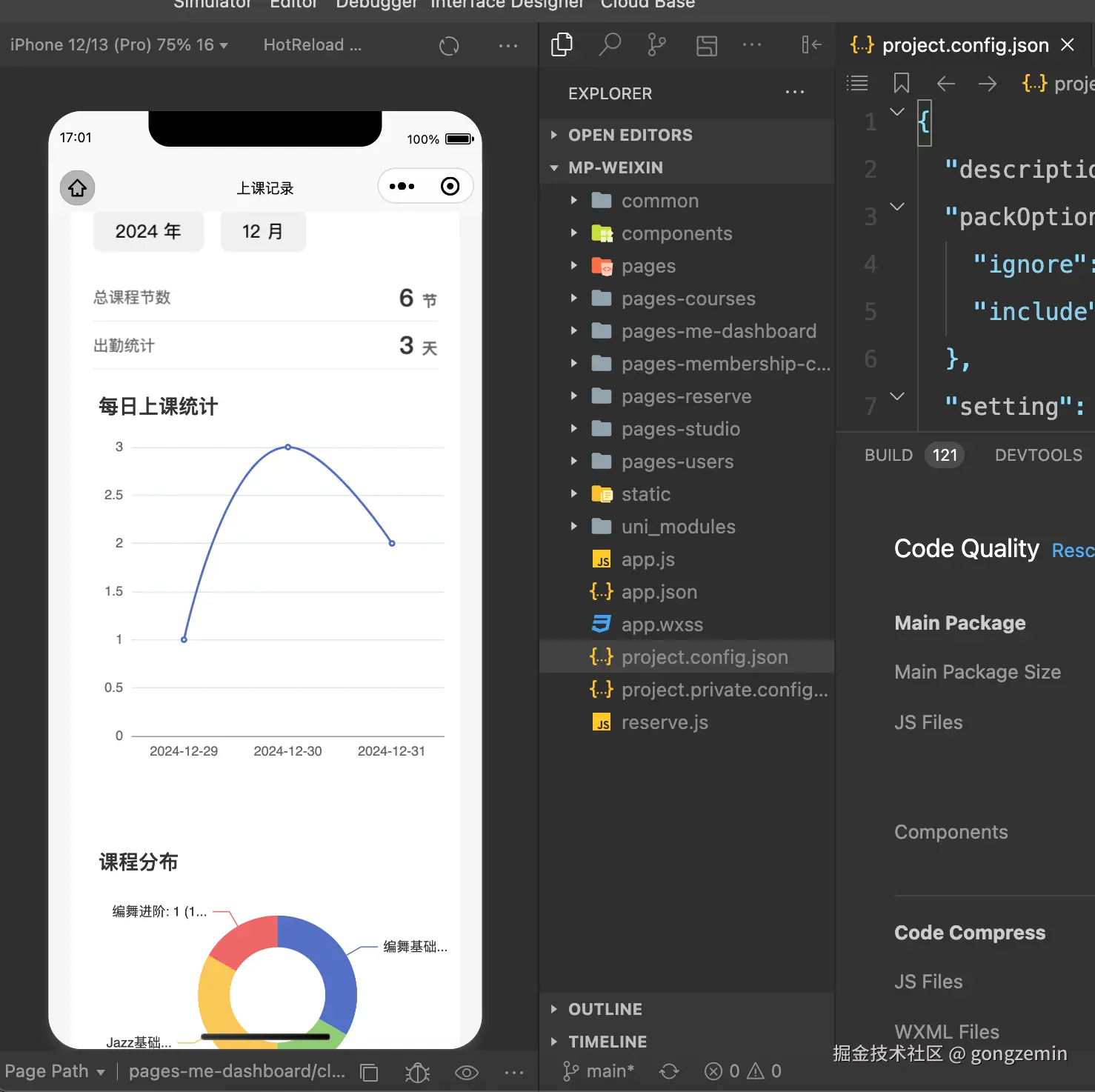

这样就能渲染了

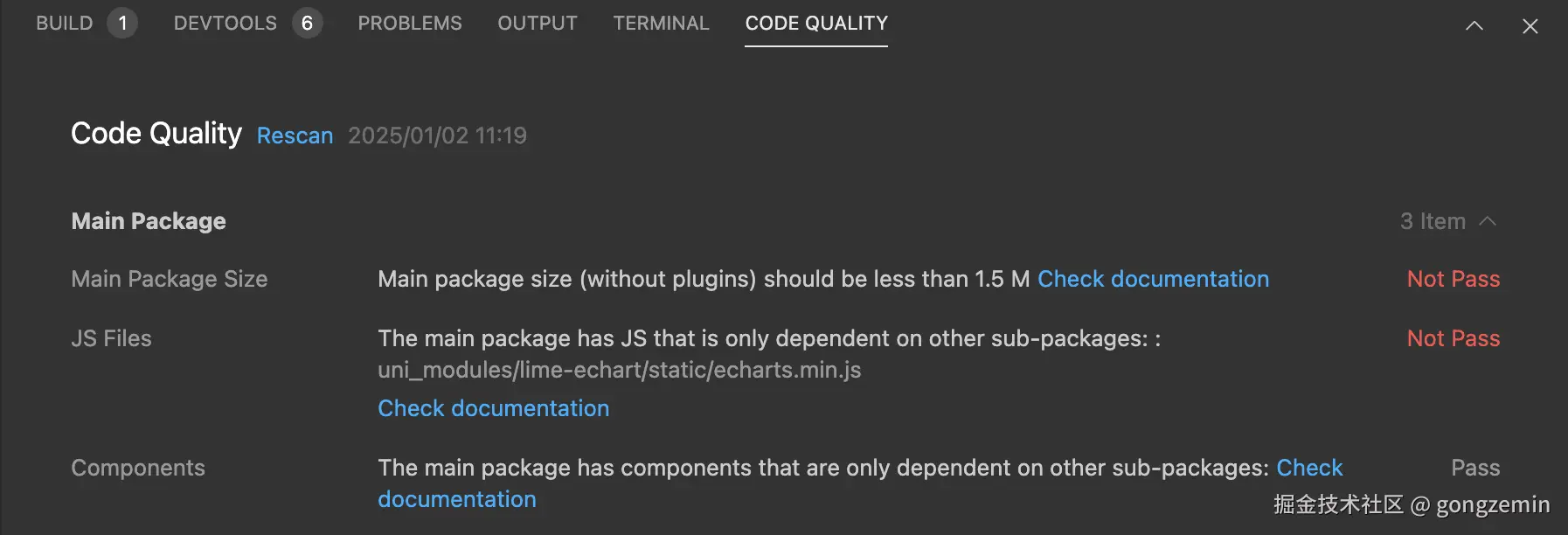

刚开始我没渲染出来，对比文档，发现我没用setTimeout，用了之后就渲染出来了，看起来一切正常，但是，我们发布的时候，提示

主包超过1.5M, 主包有只被其他子包依赖的JS文件，都没通过，并且还告诉我们是uni_modules/lime-chart/static/echarts.min.js这个文件

虽然我们是在分包里渲染Echarts，但是插件默认下载到主包的uni_modules，我们需要把Echarts依赖引入到分包里

在分包里加载Echarts依赖

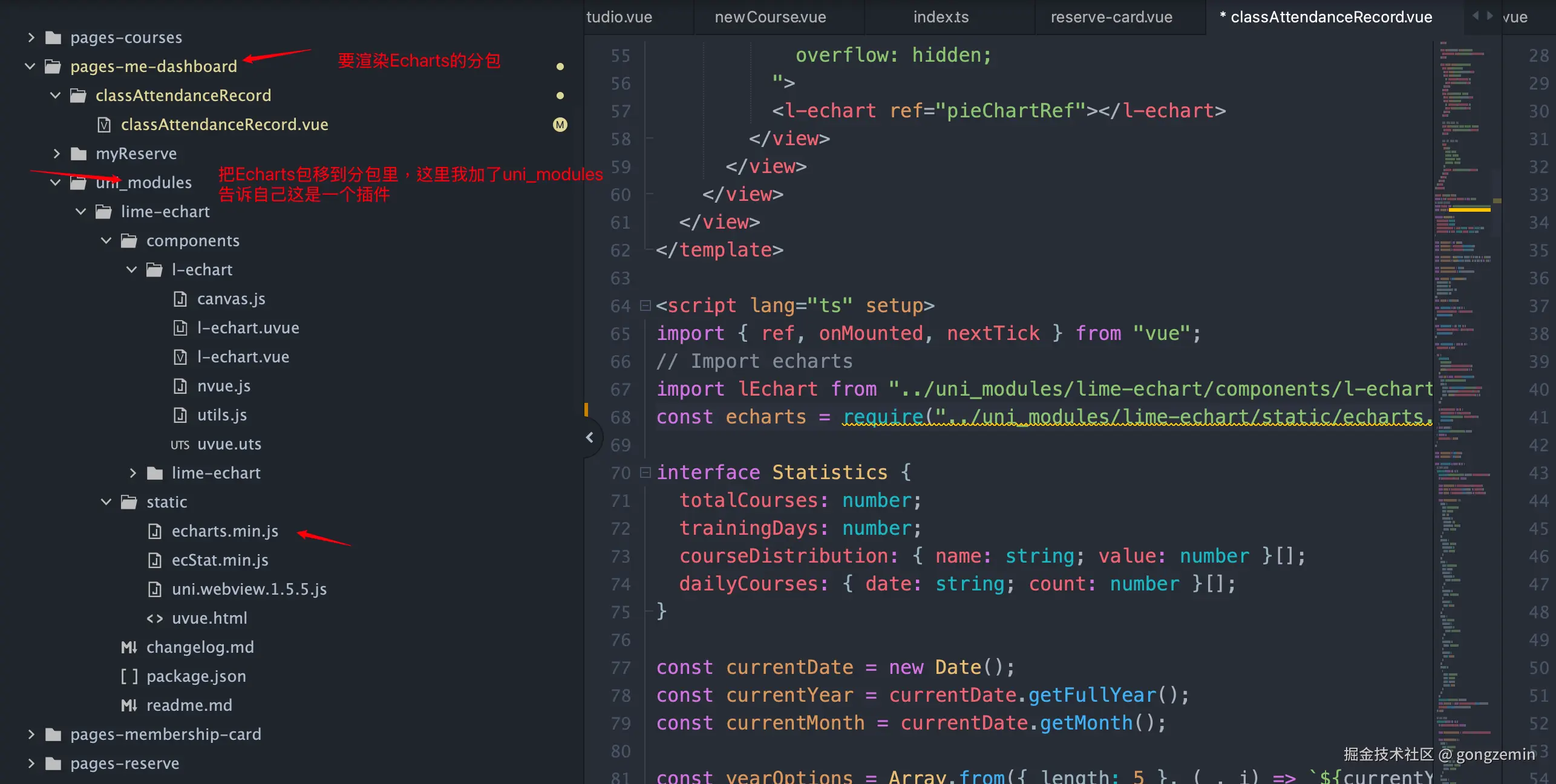

我们把主包里的Echarts文件整个移入到分包里pages-me-dashboard, 我在分包里建了一个文件夹uni_modules, 告诉自己这是一个插件，

可是却发现Echarts渲染不出来了，调试后发现chart组件不渲染了

<l-echart ref="pieChartRef"></l-echart>

于是就又手动引入lEchart组件，Echart在主包的时候，没引入lEchart组件就渲染了，发现可以正常渲染

import lEchart from "../uni_modules/lime-echart/components/l-echart/l-echart.vue";

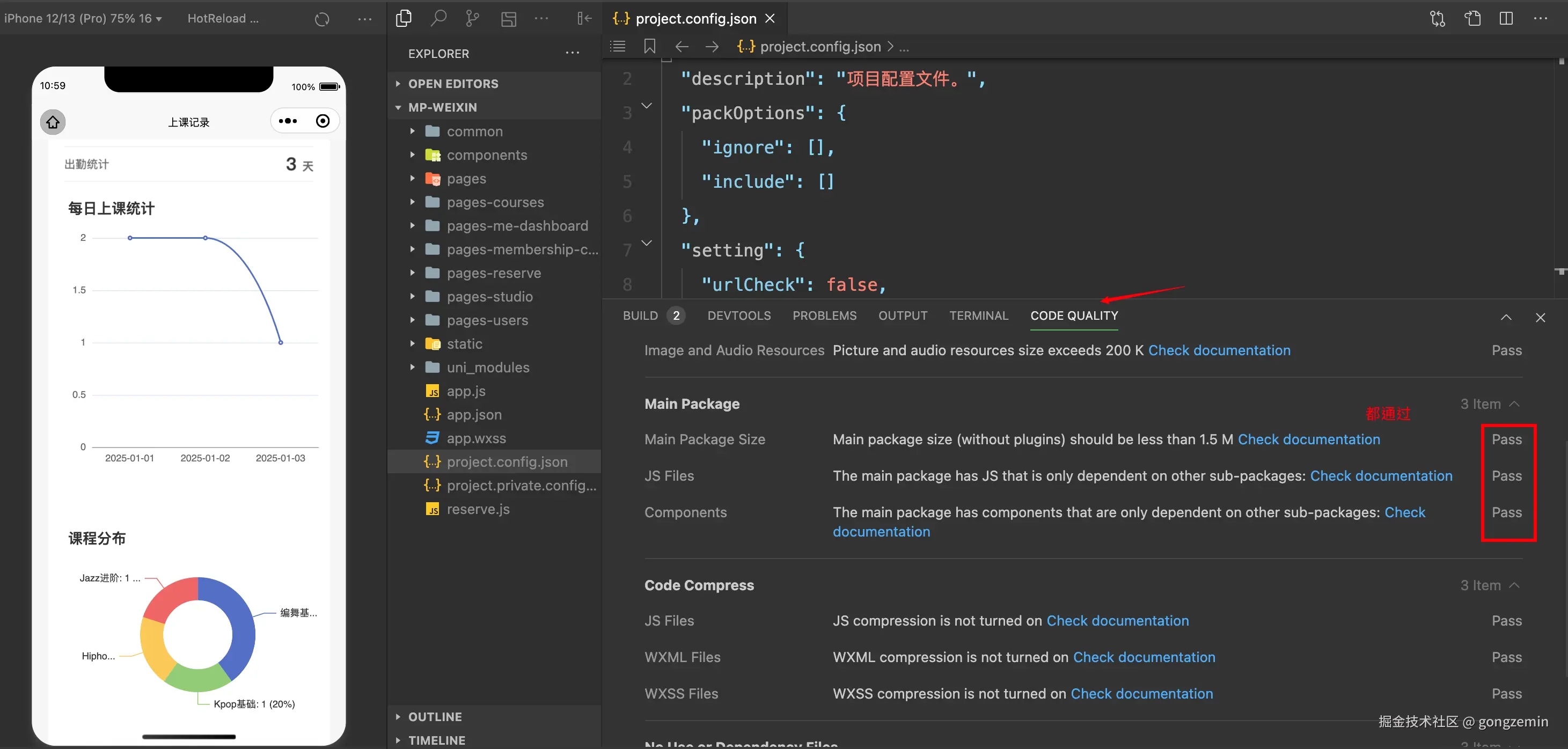

再次发布下，主包大小通过，主包存在仅被其他分包依赖的JS文件也通过✅

完整代码

<template>

  <view class="container">

    <view class="stats-card">

      <view class="header">

        <view class="date-select">

          <picker

            mode="selector"

            :value="selectedYearIndex"

            :range="yearOptions"

            @change="onYearChange">

            <view class="picker">{{ yearOptions[selectedYearIndex] }} 年</view>

          </picker>


          <picker

            mode="selector"

            :value="selectedMonthIndex"

            :range="monthOptions"

            @change="onMonthChange">

            <view class="picker">{{ monthOptions[selectedMonthIndex] }}</view>

          </picker>

        </view>

      </view>


      <view v-if="loading" class="loading">

        <uni-load-more status="loading"></uni-load-more>

      </view>


      <view v-else class="stats-content">

        <view class="stat-item">

          <text class="label">总课程节数</text>

          <text class="value">

            {{ statistics.totalCourses }}

            <text class="label">节</text>

          </text>

        </view>

        <view class="stat-item mb-20">

          <text class="label">出勤统计</text>

          <text class="value">

            {{ statistics.trainingDays }}

            <text class="label">天</text>

          </text>

        </view>


        <!-- Line Chart -->

        <view style="width: 90vw; height: 750rpx">

          <l-echart ref="lineChartRef"></l-echart>

        </view>


        <!-- Pie Chart -->

        <view

          style="

            width: 85vw;

            height: 550rpx;

            margin-top: 20px;

            overflow: hidden;

          ">

          <l-echart ref="pieChartRef"></l-echart>

        </view>

      </view>

    </view>

  </view>

</template>


<script lang="ts" setup>

import { ref, onMounted, nextTick } from "vue";

// Import echarts

import lEchart from "../uni_modules/lime-echart/components/l-echart/l-echart.vue";

const echarts = require("../uni_modules/lime-echart/static/echarts.min");


interface Statistics {

  totalCourses: number;

  trainingDays: number;

  courseDistribution: { name: string; value: number }[];

  dailyCourses: { date: string; count: number }[];

}


const currentDate = new Date();

const currentYear = currentDate.getFullYear();

const currentMonth = currentDate.getMonth();


const yearOptions = Array.from({ length: 5 }, (_, i) => `${currentYear - i}`);

const monthOptions = Array.from({ length: 12 }, (_, i) => `${i + 1} 月`);


const selectedYearIndex = ref(0);

const selectedMonthIndex = ref(currentMonth);


const statistics = ref<Statistics>({

  totalCourses: 0,

  trainingDays: 0,

  courseDistribution: [],

  dailyCourses: [],

});

const loading = ref(false);


const onYearChange = (e: any) => {

  selectedYearIndex.value = e.detail.value;

  fetchStatistics();

};


const onMonthChange = (e: any) => {

  selectedMonthIndex.value = e.detail.value;

  fetchStatistics();

};


const fetchStatistics = async () => {

  loading.value = true;


  try {

    console.log(

      "year-month",

      yearOptions[selectedYearIndex.value],

      Number(selectedMonthIndex.value) + 1

    );

    const res = await uniCloud.callFunction({

      name: "getMonthlyStatistics",

      data: {

        userId: uni.getStorageSync("userInfo").userId,

        year: yearOptions[selectedYearIndex.value],

        month: Number(selectedMonthIndex.value) + 1,

      },

    });


    if (res.result.code === 0) {

      statistics.value = res.result.data;

      console.log("charts-----", res.result.data);

      renderCharts();

    }

  } catch (error) {

    console.error("获取统计数据失败", error);

  } finally {

    loading.value = false;

  }

};


const lineChartRef = ref(null);

const pieChartRef = ref(null);


const renderCharts = async () => {

  // Line Chart

  setTimeout(async () => {

    console.log("charts111-----", echarts, lineChartRef.value);

    if (!lineChartRef.value) return;


    const dailyCourses = statistics.value.dailyCourses;

    const dates = dailyCourses.map((item) => item.date);

    const counts = dailyCourses.map((item) => item.count);


    const lineChartOption = {

      title: {

        text: "每日上课统计",

        left: "left",

        top: 10,

        textStyle: {

          fontSize: 18,

          fontWeight: "bold",

          color: "#333",

        },

      },

      tooltip: {

        trigger: "axis",

        axisPointer: {

          type: "line",

        },

      },

      xAxis: {

        type: "category",

        data: dates,

        axisLine: {

          lineStyle: {

            color: "#999999",

          },

        },

        axisLabel: {

          color: "#666666",

        },

        axisTick: {

          show: false,

        },

      },

      yAxis: {

        type: "value",

        axisLine: {

          lineStyle: {

            color: "#999999",

          },

        },

        axisLabel: {

          color: "#666666",

        },

        axisTick: {

          show: false,

        },

      },

      series: [

        {

          name: "课程节数",

          type: "line",

          data: counts,

          smooth: true,

        },

      ],

    };

    console.log("echarts", echarts);

    const lineChart = await lineChartRef.value.init(echarts);

    lineChart.setOption(lineChartOption);

  }, 500);


  // Pie Chart

  setTimeout(async () => {

    if (!pieChartRef.value) return;


    const courseDistribution = statistics.value.courseDistribution;


    const pieChartOption = {

      title: {

        text: "课程分布",

        left: "left",

        top: 10,

        textStyle: {

          fontSize: 18,

          fontWeight: "bold",

          color: "#333",

        },

      },

      tooltip: {

        trigger: "item",

        formatter: "{b}: {c} ({d}%)",

      },

      series: [

        {

          name: "课程分布",

          type: "pie",

          radius: ["30%", "50%"],

          label: {

            show: true,

            position: "outside",

            formatter: "{b}: {c} ({d}%)",

          },

          data: courseDistribution.map((item) => ({

            name: item.name,

            value: item.value,

          })),

        },

      ],

    };

    const pieChart = await pieChartRef.value.init(echarts);

    pieChart.setOption(pieChartOption);

  }, 600);

};


onMounted(() => {

  fetchStatistics();

});

</script>


<style lang="scss" scoped>

.container {

  display: flex;

  justify-content: center;

  align-items: flex-start;

  // height: 100vh;

  background-color: #f5f5f5;

  padding: 20px;

  box-sizing: border-box;

}


.stats-card {

  width: 100%;

  max-width: 650px;

  background-color: #fff;

  border-radius: 10px;

  padding: 20px;

  box-sizing: border-box;

}


.header {

  display: flex;

  justify-content: flex-start;

  margin-bottom: 20px;

}


.date-select {

  display: flex;

  gap: 15px;

}


.picker {

  padding: 8px 20px;

  background-color: #f0f0f0;

  border-radius: 8px;

  font-size: 16px;

  text-align: center;

}


.stats-content {

  display: flex;

  flex-direction: column;

  // gap: 20px;

}


.stat-item {

  display: flex;

  justify-content: space-between;

  align-items: center;

  padding: 6px 0; // 减小 padding 让行距更紧凑

  border-bottom: 1px solid #eee;


  .label {

    font-size: 14px; // 标签字体调小

    color: #666;

  }


  .value {

    font-size: 22px; // 数值字体加大

    font-weight: bold; // 加粗数值

    color: #333;

  }

}


.chart {

  height: 300px;

  margin-top: 20px;

}

</style>

效果图页面渲染的数据

{
"totalCourses": 5,
"trainingDays": 3,
"dailyCourses": [
{
"date": "2025-01-01",
"count": 2
},
{
"date": "2025-01-02",
"count": 2
},
{
"date": "2025-01-03",
"count": 1
}
],
"courseDistribution": [
{
"name": "编舞基础",
"value": 2
},
{
"name": "Kpop基础",
"value": 1
},
{
"name": "Hiphop基础",
"value": 1
},
{
"name": "Jazz进阶",
"value": 1
}
]
}
